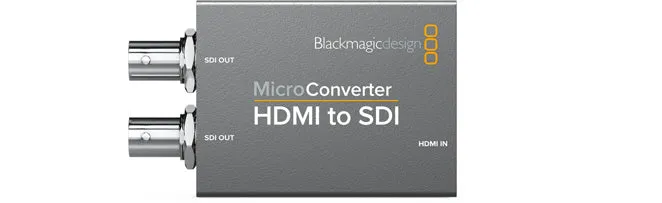

Blackmagic Micro Converter HDMI to SDI wPSU
Blackmagic SKU: BMD-CONVCMIC/HS/WPSU | Helix SKU: BMDCONVCMICHSWPSU
Overview
Take the HDMI output from laptop computers or consumer cameras and convert it to SDI for use with broadcast switchers, routers, monitors and more! The multi rate 3G-SDI automatically switches between all SD and HD formats up to 1080p60. You get 2 SDI outputs, support for Level A and Level B equipment, and power over USB!
Specifications
Connections
SDI Video Outputs
Automatically matches the SD, HD or 3G-SDI HDMI video input.
HDMI Video Inputs
HDMI Type A in.
Multi Rate Support
Auto detection of SD or HD.
Updates, Configurations and Power
Micro USB.
Reclocking
Yes
Standards
SDI Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
SDI Video Rates
SDI video connections are switchable between standard definition and high definition, and user selectable level A and B via setup utility.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically detects SD, HD and 3G-SDI
HDMI Video Standards
525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HDMI Color Precision
4:2:2
HDMI Color Space
YUV
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Software
Software Control
Mac OSX™ and Windows™ software via micro USB.
Internal Software Upgrade
Via micro USB.
Settings Control
Via software utility.
Power Requirements
5V universal power supply included with international socket adapters for all countries.
Power Consumption
2.0 Watts
Operational Voltage Range
4.4 to 5.25V DC

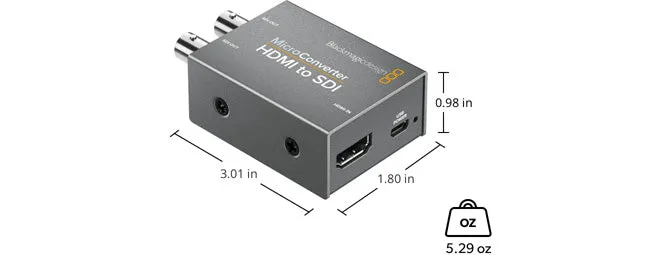

Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Micro Converter HDMI to SDI wPSU
5V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer's Warranty.
